04QuestionsAd click aggregator

04 · Worked prompt

Ad click aggregator

Design high-volume event ingestion with deduplication, streaming aggregation, late data, and auditable totals.

35 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design high-volume event ingestion with deduplication, streaming aggregation, late data, and auditable totals.

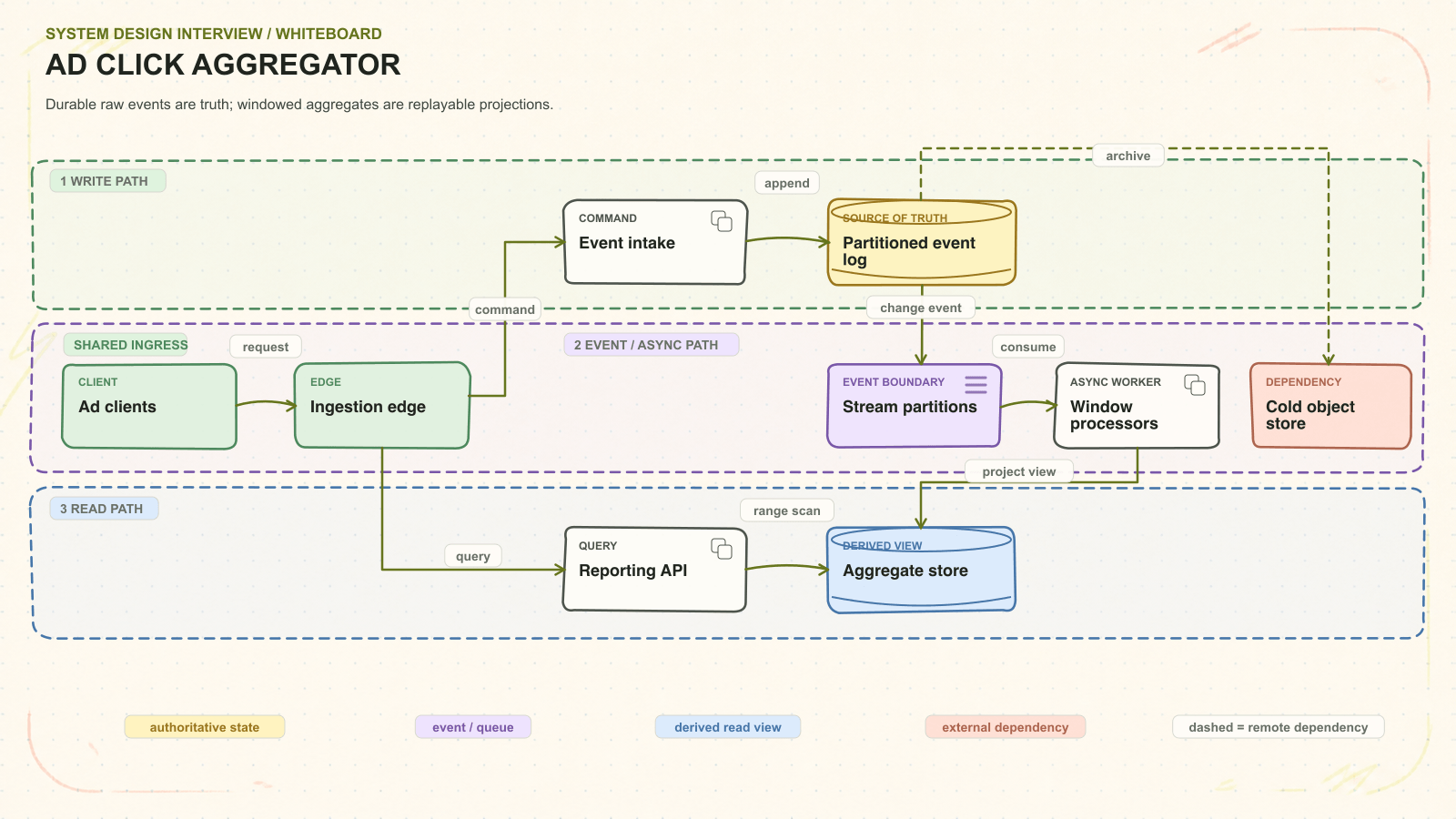

Ad click aggregator system architecture. Durable raw events are truth; windowed aggregates are replayable projections. Request path: Ad clients to Ingestion edge to Event intake to Partitioned event log. Asynchronous path: Stream partitions to Window processors. Read path: Reporting API to Aggregate store. External dependency: Cold object store. — Ad click aggregator · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

Durable raw events are truth; windowed aggregates are replayable projections.

INTERVIEW CONTRACT

Design high-volume event ingestion with deduplication, streaming aggregation, late data, and auditable totals.

CAPACITY QUESTIONS TO QUANTIFY

Millions events/s · 1–5 minute freshness · multi-year audit retention. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Ad clients → Ingestion edge
Signed click events enters over HTTPS / RPC. Ingestion edge handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Ingestion edge → Event intake → Partitioned event log
Event intake receives the command, checks invariants and retry identity, then uses append to update Partitioned event log. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Event intake → Stream partitions → Window processors → Aggregate store
Event intake emits publish after commit; Window processors uses consume and project / update to build Aggregate store. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Ingestion edge → Reporting API → Aggregate store / Partitioned event log
Reporting API uses range scan for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Partitioned event log → Cold object store
archive crosses into Cold object store. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Ingestion edgeAuth, schema, quotas	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Event intakeTimestamp + dedupe key	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Partitioned event logImmutable raw clicks	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Stream partitionsCampaign + event time	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Window processorsDedupe, watermark, correct	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Aggregate storeMinute/hour totals	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Reporting APICampaign/time queries	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Cold object storeAudit + replay archive	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: Kafka/Pulsar is the durable ingest log, S3/Parquet is the immutable audit archive, and ClickHouse/Pinot/Druid serves window aggregates.
Partitioning / sharding: Partition the stream by campaign_id for ordering; time-partition cold files. Split only proven celebrity campaigns with deterministic subkeys.
Indexes: Deduplicate on event_id for the billing horizon; sort aggregates by (campaign_id, window_start) and manifests by event date/hour.
Replication + consistency: Broker RF=3 across zones. Transport is at least once; dashboard totals are freshness-bounded while reconciled billing totals are versioned and auditable.
Cache, queue + recovery: Watermarks handle late data; checkpointed consumers build projections; malformed events go to a repair queue. Cache only recent reporting windows.
Capacity math: Estimate peak clicks/sec, bytes/event, retention years, late-event rate, hottest-campaign share, and analytical query concurrency.
Alternative rejected: SQL counters are simpler at low volume, but hot rows, late corrections, and replay requirements earn an immutable log plus projections.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Event time

Use watermarks and an allowed-lateness policy; reopen or compensate closed windows rather than dropping late clicks

This shows you understand that network time and business time differ

Deduplication

Store event IDs for the billing horizon or use partition-local compacted state

Exactly-once transport is not the same as exactly-once billing

Auditability

Keep raw immutable events and version every correction

Finance needs an explanation path, not only a fast counter

Failure pressure test

Show detection, containment, recovery, and evidence.

Broker lag

Apply admission control and scale consumers by partition lag

oldest event age and per-partition lag

Duplicate delivery

Make window updates conditional on event identity

dedupe hit rate and duplicate charge count

Late event storm

Route corrections through bounded backfill jobs

watermark delay and adjustment volume

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize accept signed click events with a stable event id and show campaign totals within five minutes.”
Scale
“The design changes around millions events/s · 1–5 minute freshness · multi-year audit retention.”
Decision
“Separate fast dashboards from exact billing totals and reconcile them.”
Risk
“The first failure I want to pressure-test is: Late, duplicate, or reordered events can alter closed windows and invoices.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Accept signed click events with a stable event ID
Show campaign totals within five minutes
Produce exact, explainable billing totals
Correct late data without silently rewriting history

Ad click aggregator · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

received

durable

deduplicated

aggregated

reconciled

02Data model and APIs4 entities · 3 interfaces

Core entities

ClickEventevent_id, ad_id, campaign_id, user_hash, occurred_atOwner: Event log

CampaignWindowcampaign_id, window_start, count, versionOwner: Stream processor

BillingAdjustmentcampaign_id, period, delta, reasonOwner: Reconciler

IngestionReceiptevent_id, accepted_at, statusOwner: Ingestion service

External interfaces

POST /v1/clicks

Accept one idempotent click and return an ingestion receipt

GET /v1/campaigns/{id}/metrics?window=1h

Read a freshness-labeled dashboard aggregate

GET /v1/campaigns/{id}/billing/{period}

Read the reconciled auditable total

03Deep dives and trade-offsChoose one

Event time

Use watermarks and an allowed-lateness policy; reopen or compensate closed windows rather than dropping late clicks

This shows you understand that network time and business time differ

Deduplication

Store event IDs for the billing horizon or use partition-local compacted state

Exactly-once transport is not the same as exactly-once billing

Auditability

Keep raw immutable events and version every correction

Finance needs an explanation path, not only a fast counter

04Failures, recovery, and evidence3 scenarios

Broker lag

Apply admission control and scale consumers by partition lag

oldest event age and per-partition lag

Duplicate delivery

Make window updates conditional on event identity

dedupe hit rate and duplicate charge count

Late event storm

Route corrections through bounded backfill jobs

watermark delay and adjustment volume

05What makes the answer seniorInterviewer signals

A strong answer separates dashboard freshness from financial finality
Do not claim exactly once without naming the atomic boundary
The best deep dive is late data plus reconciliation, not Kafka product trivia
Primary trade-off: Separate fast dashboards from exact billing totals and reconcile them.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
