04QuestionsDistributed file system

04 · Worked prompt

Distributed file system

Design metadata, chunk placement, replication, checksums, repair, and namespace consistency.

40 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design metadata, chunk placement, replication, checksums, repair, and namespace consistency.

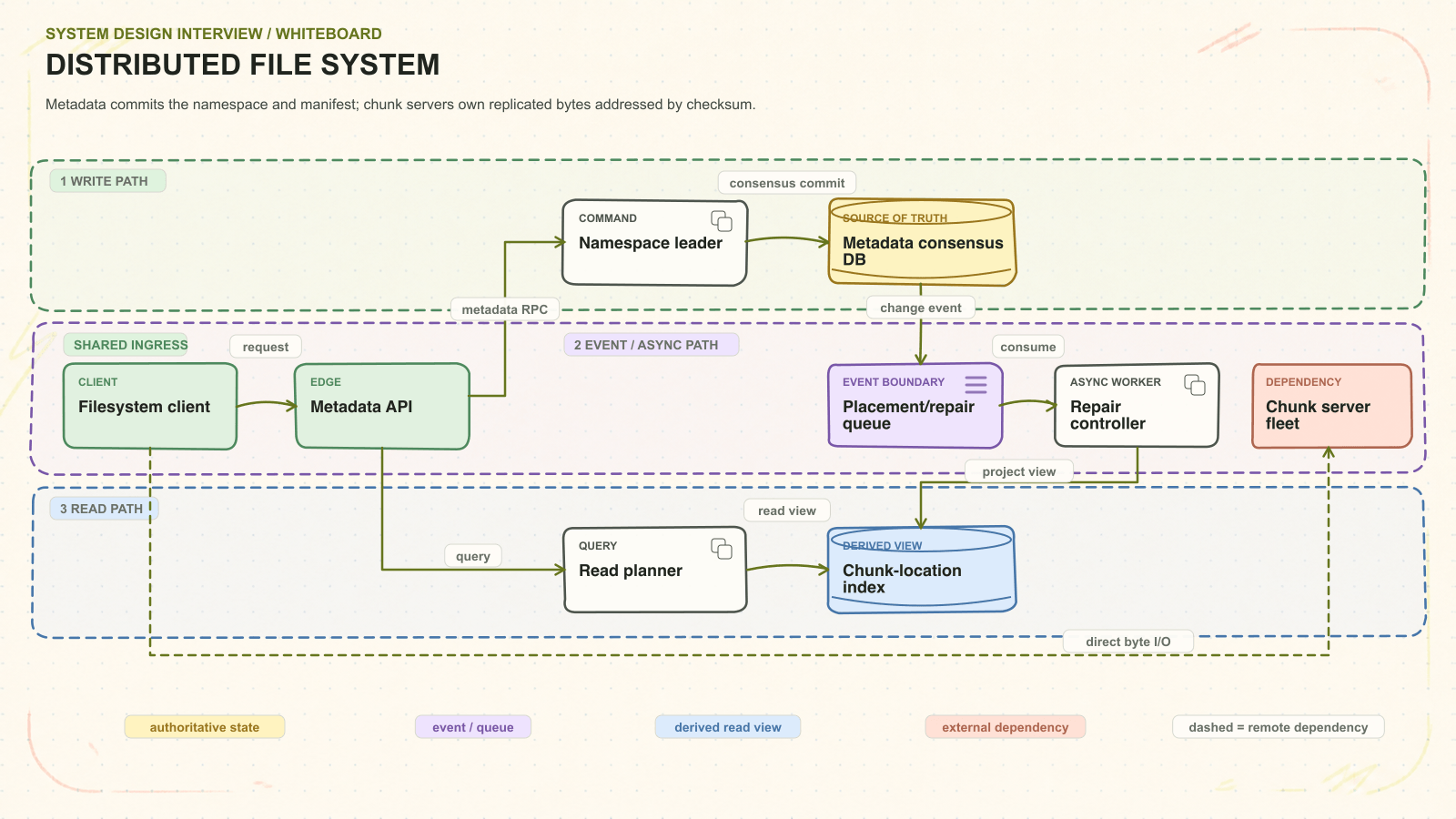

Distributed file system system architecture. Metadata commits the namespace and manifest; chunk servers own replicated bytes addressed by checksum. Request path: Filesystem client to Metadata API to Namespace leader to Metadata consensus DB. Asynchronous path: Placement/repair queue to Repair controller. Read path: Read planner to Chunk-location index. External dependency: Chunk server fleet. — Distributed file system · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

Metadata commits the namespace and manifest; chunk servers own replicated bytes addressed by checksum.

INTERVIEW CONTRACT

Design metadata, chunk placement, replication, checksums, repair, and namespace consistency.

CAPACITY QUESTIONS TO QUANTIFY

Petabytes · billions objects · large transfers · extreme durability. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Filesystem client → Metadata API
Open, upload, read range enters over HTTPS / RPC. Metadata API handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Metadata API → Namespace leader → Metadata consensus DB
Namespace leader receives the metadata RPC, checks invariants and retry identity, then uses consensus commit to update Metadata consensus DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Namespace leader → Placement/repair queue → Repair controller → Chunk-location index
Namespace leader emits publish after commit; Repair controller uses consume and project / update to build Chunk-location index. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Metadata API → Read planner → Chunk-location index / Metadata consensus DB
Read planner uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Filesystem client → Chunk server fleet
direct byte I/O crosses into Chunk server fleet. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Metadata APIAuth + path resolution	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Namespace leaderReserve + commit manifest	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Metadata consensus DBInodes + manifests	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Placement/repair queueUnder-replicated chunks	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Repair controllerCopy, checksum, rebalance	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Chunk-location indexHealthy replica map	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Read plannerManifest + replica choice	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Chunk server fleetReplicated immutable chunks	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: A Raft/Spanner/Cockroach-style metadata store owns namespace and manifests; replicated chunk servers or object storage own immutable byte chunks.
Partitioning / sharding: Partition the namespace by volume or directory subtree; place chunks by rendezvous hash across failure domains. Clients transfer bytes directly.
Indexes: Unique (parent_inode, name), manifest by file_id/version, chunk locations by chunk_id, and an under-replicated priority index.
Replication + consistency: Metadata commits through quorum. Chunks use three replicas or erasure coding; cached locations are valid only under a manifest version/lease.
Cache, queue + recovery: Repair, rebalancing, scrub, and garbage collection use durable queues. A file is visible only after a complete manifest commits.
Capacity math: Estimate files, namespace ops/sec, p50/p99 file size, chunk size, aggregate throughput, metadata bytes/file, and repair bandwidth.
Alternative rejected: Database BLOBs simplify transactions but destroy metadata latency and replication cost; separate immutable bytes from strong metadata.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Metadata sharding

Partition by stable directory or inode ownership and handle cross-shard rename as an explicit transaction

Path strings are poor stable shard keys

Durability

Place replicas across failure domains and repair from periodic integrity scans

Replication count alone does not prove durability

Atomic visibility

Expose a file only after a conditional manifest commit references verified chunks

Bytes and metadata must not become visible independently

Failure pressure test

Show detection, containment, recovery, and evidence.

Storage node loss

Read another replica and enqueue priority repair

under-replicated bytes and repair age

Client abandons upload

Expire session and garbage-collect unreferenced chunks

orphan bytes

Metadata leader loss

Fail over under a fenced epoch and replay durable log

namespace recovery time

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize create, read, list, rename, and delete paths and upload and download very large files.”
Scale
“The design changes around petabytes · billions objects · large transfers · extreme durability.”
Decision
“Immutable object semantics scale simply; mutable hierarchy needs stronger metadata coordination.”
Risk
“The first failure I want to pressure-test is: A metadata commit that outlives only some chunks exposes corrupt files.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Create, read, list, rename, and delete paths
Upload and download very large files
Survive node and rack loss without corrupt data
Scale namespace and background repair independently

Distributed file system · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

reserved

uploading

verifying

committed

deleted

02Data model and APIs4 entities · 4 interfaces

Core entities

Inodeinode_id, parent_id, name, type, versionOwner: Metadata service

FileManifestinode_id, ordered_chunks, size, checksumOwner: Metadata service

ChunkReplicachunk_id, node_id, checksum, stateOwner: Chunk manager

UploadSessionsession_id, target_path, parts, expiryOwner: Upload coordinator

External interfaces

POST /v1/uploads

Reserve a target path and multipart plan

PUT /v1/uploads/{id}/parts/{n}

Transfer a checksummed immutable chunk

POST /v1/uploads/{id}/commit

Atomically publish the completed manifest

GET /v1/files/{path}

Resolve manifest and signed replica reads

03Deep dives and trade-offsChoose one

Metadata sharding

Partition by stable directory or inode ownership and handle cross-shard rename as an explicit transaction

Path strings are poor stable shard keys

Durability

Place replicas across failure domains and repair from periodic integrity scans

Replication count alone does not prove durability

Atomic visibility

Expose a file only after a conditional manifest commit references verified chunks

Bytes and metadata must not become visible independently

04Failures, recovery, and evidence3 scenarios

Storage node loss

Read another replica and enqueue priority repair

under-replicated bytes and repair age

Client abandons upload

Expire session and garbage-collect unreferenced chunks

orphan bytes

Metadata leader loss

Fail over under a fenced epoch and replay durable log

namespace recovery time

05What makes the answer seniorInterviewer signals

Draw metadata and byte paths separately
The manifest commit is the key correctness boundary
Discuss directory operations, not only S3-style immutable objects
Primary trade-off: Immutable object semantics scale simply; mutable hierarchy needs stronger metadata coordination.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
