Webhook delivery system

Design subscriptions, signing, durable delivery, exponential retry, idempotency, and tenant isolation.

35 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design subscriptions, signing, durable delivery, exponential retry, idempotency, and tenant isolation.

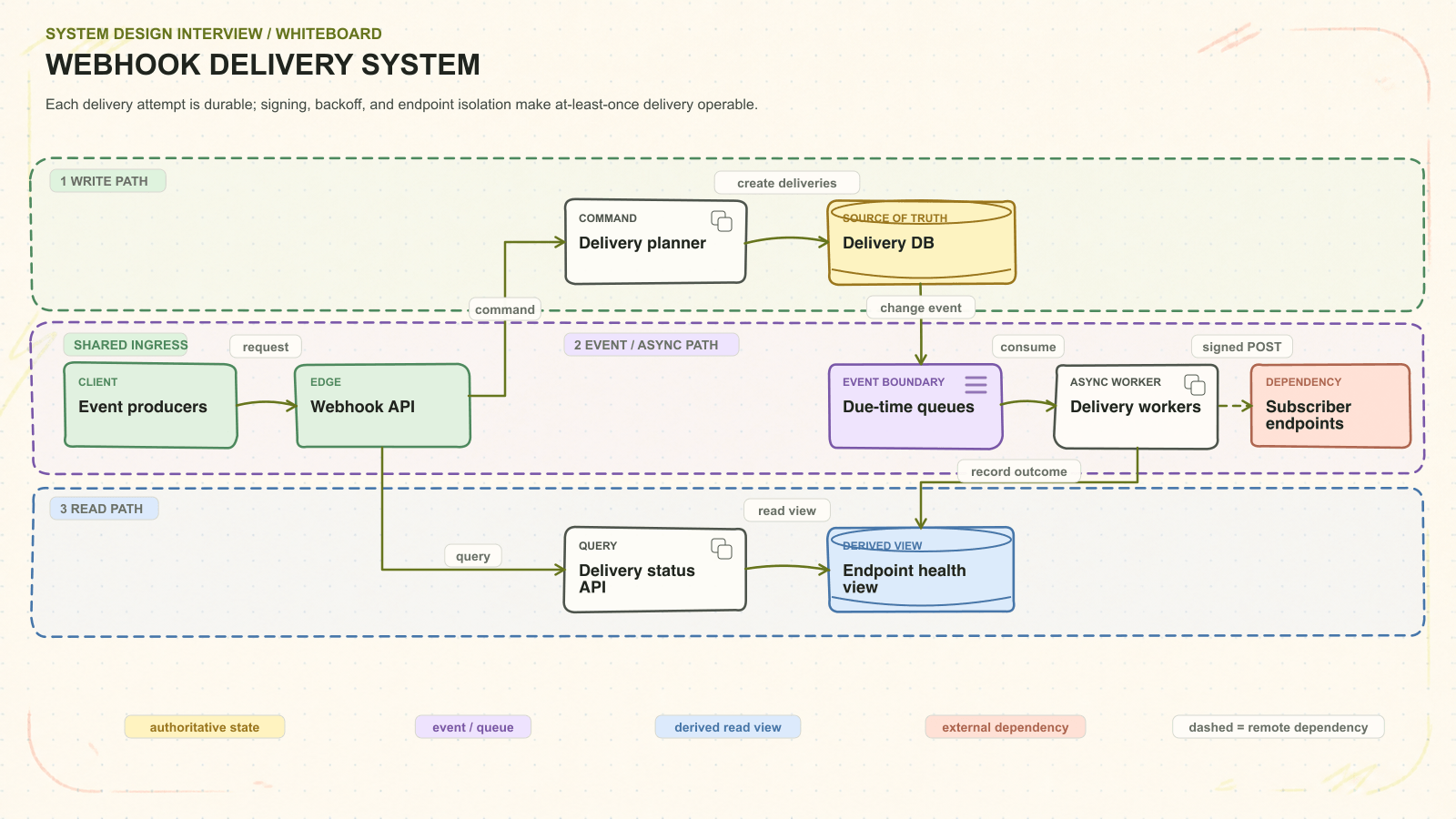

Webhook delivery system system architecture. Each delivery attempt is durable; signing, backoff, and endpoint isolation make at-least-once delivery operable. Request path: Event producers to Webhook API to Delivery planner to Delivery DB. Asynchronous path: Due-time queues to Delivery workers. Read path: Delivery status API to Endpoint health view. External dependency: Subscriber endpoints. — Webhook delivery system · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

Each delivery attempt is durable; signing, backoff, and endpoint isolation make at-least-once delivery operable.

INTERVIEW CONTRACT

Design subscriptions, signing, durable delivery, exponential retry, idempotency, and tenant isolation.

CAPACITY QUESTIONS TO QUANTIFY

At-least-once · seconds first attempt · days retry · strict tenant quotas. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Event producers → Webhook API
Publish tenant events enters over HTTPS / RPC. Webhook API handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Webhook API → Delivery planner → Delivery DB
Delivery planner receives the command, checks invariants and retry identity, then uses create deliveries to update Delivery DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Delivery planner → Due-time queues → Delivery workers → Endpoint health view
Delivery planner emits publish after commit; Delivery workers uses consume and record outcome to build Endpoint health view. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Webhook API → Delivery status API → Endpoint health view / Delivery DB
Delivery status API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Delivery workers → Subscriber endpoints
signed POST crosses into Subscriber endpoints. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Webhook APIAuth + subscription version	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Delivery plannerMatch subscriptions + due time	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Delivery DBEvent, endpoint, attempt state	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Due-time queuesTenant + next-attempt bucket	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Delivery workersSign + bounded HTTP send	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Endpoint health viewLatency, failures, pause	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Delivery status APIAttempts + terminal reason	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Subscriber endpointsIdempotent HTTPS receivers	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL stores subscriptions/deliveries/attempts; Kafka/SQS stores due work; object storage retains large payloads.
Partitioning / sharding: Partition by tenant/endpoint + time bucket; preserve per-endpoint order only if required and isolate huge tenants.
Indexes: Unique (event_id, endpoint_id), due (state, next_attempt, shard), attempts by delivery/time, and endpoint failure streak.
Replication + consistency: Producer acceptance requires durable delivery creation. Delivery is at least once with stable event IDs and conditional local transitions.
Cache, queue + recovery: Queues carry delivery IDs; use visibility leases, exponential backoff+jitter, per-endpoint concurrency, circuit breaking, and DLQs.
Capacity math: Estimate events/sec × subscribers, payload size, endpoint latency, retry amplification, retention, and worst endpoint.
Alternative rejected: Synchronous fan-out couples producer availability to subscribers; durable delivery records isolate slow and failing endpoints.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Retry policy

Use exponential backoff with jitter, maximum age, and Retry-After support

Retry forever is a denial-of-service feature

Ordering

Offer per-subscription ordered mode only when required and expose head-of-line cost

Global ordering is unnecessary

Tenant isolation

Partition quotas by tenant and endpoint, cap concurrent connections, and pause unhealthy targets

One customer must not consume the delivery fleet

Failure pressure test

Show detection, containment, recovery, and evidence.

Endpoint times out

Record ambiguous attempt and retry with same event identity

timeout rate and oldest pending

Secret rotation

Sign with versioned active secret and allow bounded overlap

verification failures by secret version

DNS or certificate failure

Back off endpoint-wide and surface clear health state

paused endpoints

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize register event subscriptions and deliver signed events at least once.”
Scale
“The design changes around at-least-once · seconds first attempt · days retry · strict tenant quotas.”
Decision
“Per-endpoint order protects consumers but allows one poison event to block the stream.”
Risk
“The first failure I want to pressure-test is: Slow receivers and unbounded retries can consume the entire fleet.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Register event subscriptions
Deliver signed events at least once
Retry transient failures for days
Protect the fleet from slow or broken tenant endpoints

Webhook delivery system · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

pending

in flight

succeeded

retrying

exhausted or paused

02Data model and APIs4 entities · 4 interfaces

Core entities

Subscriptionsubscription_id, tenant_id, endpoint, secret_version, filtersOwner: Subscription service

WebhookEventevent_id, type, payload_ref, occurred_atOwner: Event store

Deliverydelivery_id, event_id, subscription_id, attempt, due_at, stateOwner: Delivery log

EndpointHealthsubscription_id, failures, paused_untilOwner: Control plane

External interfaces

POST /v1/subscriptions

Create endpoint, filters, and secret

POST /internal/events

Publish one immutable domain event

POST /v1/deliveries/{id}/replay

Create an authorized new delivery chain

GET /v1/deliveries?cursor={cursor}

Inspect attempts and responses

03Deep dives and trade-offsChoose one

Retry policy

Use exponential backoff with jitter, maximum age, and Retry-After support

Retry forever is a denial-of-service feature

Ordering

Offer per-subscription ordered mode only when required and expose head-of-line cost

Global ordering is unnecessary

Tenant isolation

Partition quotas by tenant and endpoint, cap concurrent connections, and pause unhealthy targets

One customer must not consume the delivery fleet

04Failures, recovery, and evidence3 scenarios

Endpoint times out

Record ambiguous attempt and retry with same event identity

timeout rate and oldest pending

Secret rotation

Sign with versioned active secret and allow bounded overlap

verification failures by secret version

DNS or certificate failure

Back off endpoint-wide and surface clear health state

paused endpoints

05What makes the answer seniorInterviewer signals

At-least-once means the receiver needs event IDs and idempotency
The operational product includes logs, replay, and endpoint health
Per-endpoint ordering is a paid complexity, not a default
Primary trade-off: Per-endpoint order protects consumers but allows one poison event to block the stream.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
