04QuestionsSlack

04 · Worked prompt

Slack

Design conversations, ordered delivery, offline sync, presence, search, and attachment storage.

35 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design conversations, ordered delivery, offline sync, presence, search, and attachment storage.

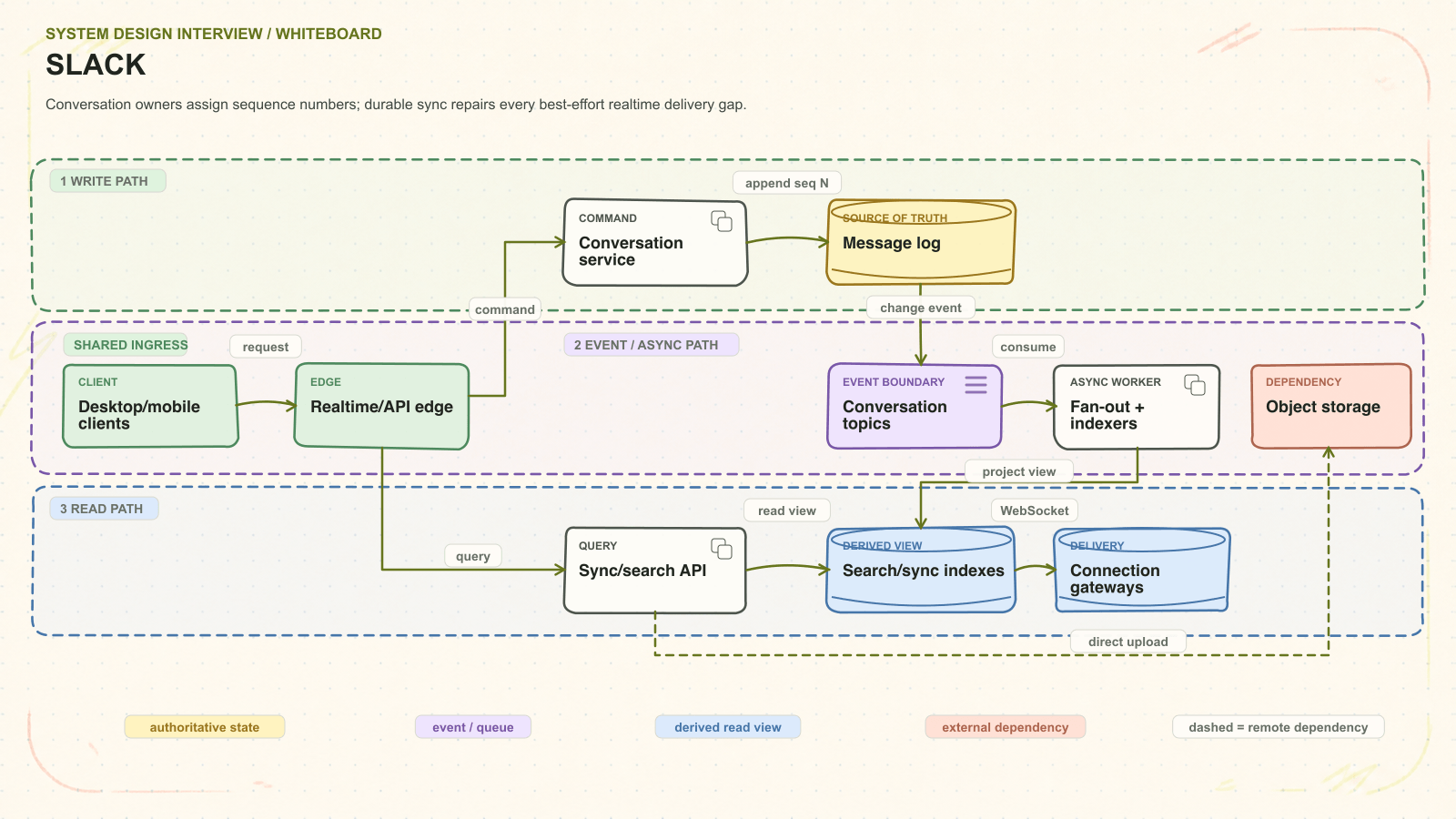

Slack system architecture. Conversation owners assign sequence numbers; durable sync repairs every best-effort realtime delivery gap. Request path: Desktop/mobile clients to Realtime/API edge to Conversation service to Message log. Asynchronous path: Conversation topics to Fan-out + indexers. Read path: Sync/search API to Search/sync indexes. External dependency: Object storage. Delivery path: Connection gateways. — Slack · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

Conversation owners assign sequence numbers; durable sync repairs every best-effort realtime delivery gap.

INTERVIEW CONTRACT

Design conversations, ordered delivery, offline sync, presence, search, and attachment storage.

CAPACITY QUESTIONS TO QUANTIFY

Concurrent connections · modest room rate · strict membership · offline retention. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Desktop/mobile clients → Realtime/API edge
Send, sync, search enters over HTTPS / RPC. Realtime/API edge handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Realtime/API edge → Conversation service → Message log
Conversation service receives the command, checks invariants and retry identity, then uses append seq N to update Message log. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Conversation service → Conversation topics → Fan-out + indexers → Search/sync indexes
Conversation service emits publish after commit; Fan-out + indexers uses consume and project / update to build Search/sync indexes. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Realtime/API edge → Sync/search API → Search/sync indexes / Message log
Sync/search API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Conversation service → Object storage
direct upload crosses into Object storage. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.
06
Deliver without changing the source of truth
Fan-out + indexers → Connection gateways → Desktop/mobile clients
Fan-out + indexers uses fan-out; Connection gateways returns updates over WebSocket. Sequence IDs, reconnect cursors, and backpressure make delivery resumable without turning a socket into durable state.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Realtime/API edgeAuth + connection ownership	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Conversation serviceDedupe + allocate sequence	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Message logOrdered messages + edits	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Conversation topicsCommitted message events	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Fan-out + indexersDeliver, notify, index	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Search/sync indexesAuthorized query views	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Sync/search APIRanges + authorized results	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Object storageAttachments + signed access	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback
Connection gatewaysLive events + receipts	Connection and delivery state	Separates open connections and fan-out pressure from durable domain state.	Reconnect, ordering, slow consumers

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: Cassandra/Scylla stores channel history; PostgreSQL stores workspace/membership metadata; object storage holds attachments; Redis holds presence.
Partitioning / sharding: Partition messages by channel_id + time bucket with one channel sequencer. Partition membership by workspace/user.
Indexes: Messages cluster by sequence/time; unique client_message_id; unread by user/channel cursor; search is a separate index.
Replication + consistency: Order is strong within a channel. Presence, search, unread counts, and remote fan-out are eventual and repair from sequence cursors.
Cache, queue + recovery: Channel-keyed pub/sub fans committed events to gateways; notification/search/analytics groups retry independently.
Capacity math: Estimate messages/sec, active sockets, channel-size distribution, largest fan-out, history bytes/day, and attachment egress.
Alternative rejected: SQL messages are fine initially; unbounded hot-channel history and retention favor time-bucketed wide-column storage at scale.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Ordering

Use one logical sequencer per conversation and no global order

Users care about room order, not worldwide serialization

Offline sync

Return sequence gaps from durable history and use live delivery only as an optimization

Push notifications are not a message store

Large channels

Fan out lightweight event IDs to gateway groups and hydrate from shared storage

Copying full messages per recipient wastes storage and complicates deletion

Failure pressure test

Show detection, containment, recovery, and evidence.

Gateway disconnect

Reconnect and request after last durable sequence

gap repair volume

Duplicate send

Return existing message for client message ID

dedupe rate

Membership revoked

Enforce current membership on history and attachment reads

denied stale-session reads

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize send messages and attachments and deliver in conversation order.”
Scale
“The design changes around concurrent connections · modest room rate · strict membership · offline retention.”
Decision
“Per-conversation order is sufficient; global order is unnecessary.”
Risk
“The first failure I want to pressure-test is: Reconnect, duplicates, and membership changes can create gaps or unauthorized history.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Send messages and attachments
Deliver in conversation order
Support offline sync and multi-device read state
Handle membership, search, presence, and large channels

Slack · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

accepted

committed

delivered

read

edited or deleted

02Data model and APIs4 entities · 3 interfaces

Core entities

Conversationconversation_id, membership_version, sequenceOwner: Conversation service

Messageconversation_id, sequence, message_id, sender, body_refOwner: Message log

Receiptuser_id, conversation_id, read_through_sequenceOwner: Receipt store

Attachmentattachment_id, digest, policy, stateOwner: Blob service

External interfaces

POST /v1/conversations/{id}/messages

Append an idempotent message

GET /v1/conversations/{id}/messages?after={sequence}

Repair an ordered range

POST /v1/conversations/{id}/read_receipts

Advance read cursor monotonically

03Deep dives and trade-offsChoose one

Ordering

Use one logical sequencer per conversation and no global order

Users care about room order, not worldwide serialization

Offline sync

Return sequence gaps from durable history and use live delivery only as an optimization

Push notifications are not a message store

Large channels

Fan out lightweight event IDs to gateway groups and hydrate from shared storage

Copying full messages per recipient wastes storage and complicates deletion

04Failures, recovery, and evidence3 scenarios

Gateway disconnect

Reconnect and request after last durable sequence

gap repair volume

Duplicate send

Return existing message for client message ID

dedupe rate

Membership revoked

Enforce current membership on history and attachment reads

denied stale-session reads

05What makes the answer seniorInterviewer signals

The acknowledgement point should be after durable append, not after every recipient receives it
Presence is ephemeral; history is durable
Sequence cursors unify ordering, pagination, and reconnect recovery
Primary trade-off: Per-conversation order is sufficient; global order is unnecessary.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
