04QuestionsRemote Devbox

04 · Worked prompt

Remote Devbox

Design secure workspace provisioning, lifecycle control, persistent volumes, terminals, and low-latency streaming.

40 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design secure workspace provisioning, lifecycle control, persistent volumes, terminals, and low-latency streaming.

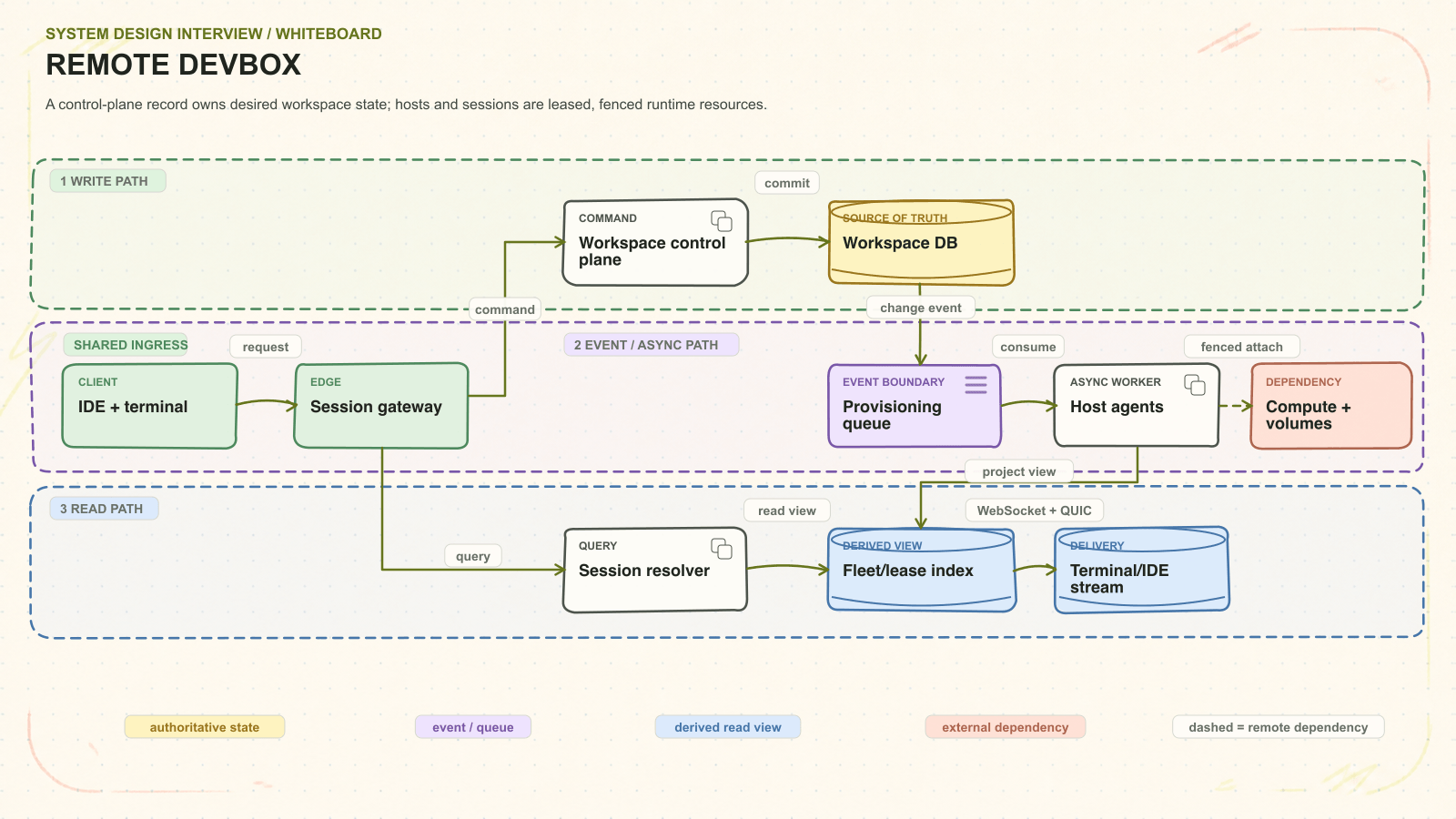

Remote Devbox system architecture. A control-plane record owns desired workspace state; hosts and sessions are leased, fenced runtime resources. Request path: IDE + terminal to Session gateway to Workspace control plane to Workspace DB. Asynchronous path: Provisioning queue to Host agents. Read path: Session resolver to Fleet/lease index. External dependency: Compute + volumes. Delivery path: Terminal/IDE stream. — Remote Devbox · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

A control-plane record owns desired workspace state; hosts and sessions are leased, fenced runtime resources.

INTERVIEW CONTRACT

Design secure workspace provisioning, lifecycle control, persistent volumes, terminals, and low-latency streaming.

CAPACITY QUESTIONS TO QUANTIFY

Interactive latency · bursty starts · persistent volumes · tenant isolation. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
IDE + terminal → Session gateway
Create, connect, suspend enters over HTTPS / RPC. Session gateway handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Session gateway → Workspace control plane → Workspace DB
Workspace control plane receives the command, checks invariants and retry identity, then uses commit to update Workspace DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Workspace control plane → Provisioning queue → Host agents → Fleet/lease index
Workspace control plane emits publish after commit; Host agents uses consume and project / update to build Fleet/lease index. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Session gateway → Session resolver → Fleet/lease index / Workspace DB
Session resolver uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Host agents → Compute + volumes
fenced attach crosses into Compute + volumes. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.
06
Deliver without changing the source of truth
Host agents → Terminal/IDE stream → IDE + terminal
Host agents uses fan-out; Terminal/IDE stream returns updates over WebSocket / QUIC. Sequence IDs, reconnect cursors, and backpressure make delivery resumable without turning a socket into durable state.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Session gatewayAuth + encrypted proxy	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Workspace control planePlacement + lifecycle state	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Workspace DBDesired state + lease epoch	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Provisioning queueRegion/resource class	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Host agentsBoot, attach, heartbeat	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Fleet/lease indexCapacity + live endpoints	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Session resolverWorkspace to active lease	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Compute + volumesVM/container + persistent disk	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback
Terminal/IDE streamLow-latency bidirectional bytes	Connection and delivery state	Separates open connections and fan-out pressure from durable domain state.	Reconnect, ordering, slow consumers

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL stores workspace lifecycle/leases; object storage stores snapshots; block volumes store active filesystems; Redis routes sessions.
Partitioning / sharding: Partition control state by organization/workspace and place compute/volumes by region/capacity pool. One workspace has one fenced owner.
Indexes: Unique create key, workspaces by owner/state, leases by host/expiry, and snapshots by workspace/time.
Replication + consistency: Lifecycle and fencing epochs are strong. Terminal delivery and capacity inventory may be eventually refreshed; no runner holds unique state.
Cache, queue + recovery: Durable stage queues support provision, checkpoint, suspend, resume, and compensating cleanup. Cache image layers near compute.
Capacity math: Estimate concurrent workspaces, vCPU/RAM, image GB, snapshot bandwidth, startup p95, idle duration, and regional headroom.
Alternative rejected: Orchestrator-only state hides repair; a durable workspace record plus fenced stages makes retries and cleanup inspectable.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Volume fencing

Increment attachment epoch and reject stale-host writes

Compute failover without storage fencing risks corruption

Warm capacity

Maintain small image-aware pools with strict scrub and tenant reassignment

Fast starts cannot weaken isolation

Interactive gateway

Keep gateways stateless beyond connection routing and support reconnect tokens

A gateway failure should not destroy the workspace

Failure pressure test

Show detection, containment, recovery, and evidence.

Host lost

Fence old lease, attach volume elsewhere, and replay agent state

workspace recovery time

Agent heartbeat lost

Distinguish network partition from stopped VM before reprovisioning

false recovery rate

Idle leak

Suspend under explicit policy and preserve user notification

idle compute hours

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize create reproducible workspaces quickly and provide low-latency terminal and ide sessions.”
Scale
“The design changes around interactive latency · bursty starts · persistent volumes · tenant isolation.”
Decision
“Warm pools reduce startup time but expand cost and reassignment risk.”
Risk
“The first failure I want to pressure-test is: Zombie compute and volume races can leak data or strand workspaces.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Create reproducible workspaces quickly
Provide low-latency terminal and IDE sessions
Persist user files across compute loss
Enforce tenant isolation and idle-cost controls

Remote Devbox · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

provisioning

ready

suspended

recovering

deleted

02Data model and APIs4 entities · 3 interfaces

Core entities

Workspaceworkspace_id, owner_id, image, desired_state, versionOwner: Control plane

InstanceLeaseworkspace_id, host_id, token, expires_atOwner: Provisioner

VolumeAttachmentvolume_id, workspace_id, host_id, epochOwner: Storage control

Sessionsession_id, workspace_id, gateway, expires_atOwner: Access gateway

External interfaces

POST /v1/workspaces

Create desired state from an image and size

POST /v1/workspaces/{id}/sessions

Mint a short-lived interactive session

PATCH /v1/workspaces/{id}

Suspend, resume, resize, or delete conditionally

03Deep dives and trade-offsChoose one

Volume fencing

Increment attachment epoch and reject stale-host writes

Compute failover without storage fencing risks corruption

Warm capacity

Maintain small image-aware pools with strict scrub and tenant reassignment

Fast starts cannot weaken isolation

Interactive gateway

Keep gateways stateless beyond connection routing and support reconnect tokens

A gateway failure should not destroy the workspace

04Failures, recovery, and evidence3 scenarios

Host lost

Fence old lease, attach volume elsewhere, and replay agent state

workspace recovery time

Agent heartbeat lost

Distinguish network partition from stopped VM before reprovisioning

false recovery rate

Idle leak

Suspend under explicit policy and preserve user notification

idle compute hours

05What makes the answer seniorInterviewer signals

Draw control plane, data plane, and storage boundary separately
Persistent identity belongs to the workspace, not the VM
Explain how stale hosts are prevented from writing after failover
Primary trade-off: Warm pools reduce startup time but expand cost and reassignment risk.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.

Scope the problem

Define contracts

Complete the diagram

Lead one deep dive

Prove reliability

Write

Propagate

Read

Trace the architecture in this order.

Enter and classify the request

Validate, then cross the commit boundary

Move replayable work off the request path

Serve reads from the right authority

Contain the dependency boundary

Deliver without changing the source of truth

Why each box exists—and what it must defend.

Name the database, shard key, indexes, and guarantees.

Pick one risk and explain the mechanism, alternative, and cost.

Volume fencing

Warm capacity

Interactive gateway

Show detection, containment, recovery, and evidence.

Host lost

Agent heartbeat lost

Idle leak

Reference details

Core entities

External interfaces

Volume fencing

Warm capacity

Interactive gateway

Host lost

Agent heartbeat lost

Idle leak

Can you redraw it from memory?
