04QuestionsBatch inference system

04 · Worked prompt

Batch inference system

Design large job admission, GPU-aware scheduling, checkpointing, artifacts, and cost-aware throughput.

40 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design large job admission, GPU-aware scheduling, checkpointing, artifacts, and cost-aware throughput.

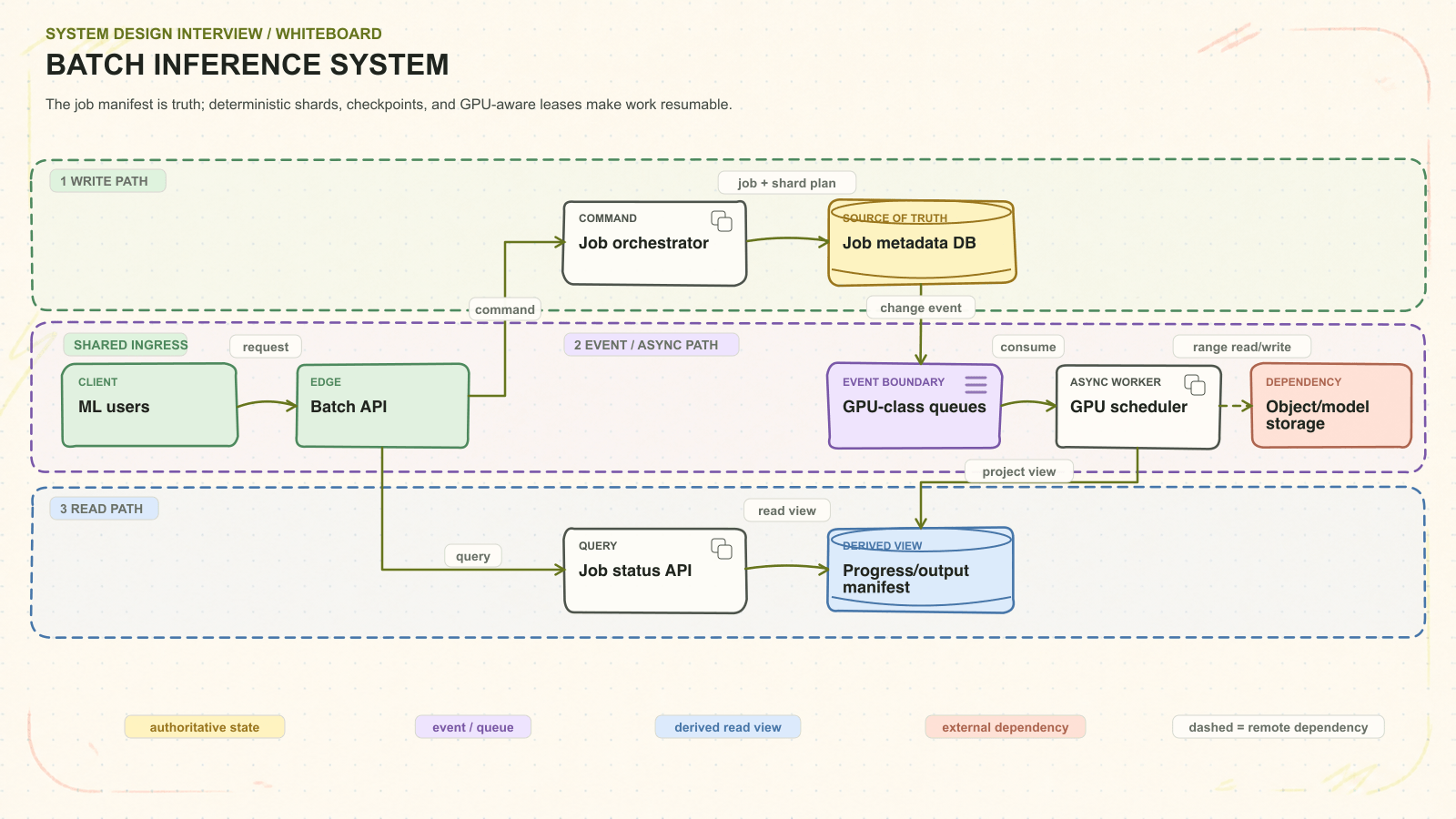

Batch inference system system architecture. The job manifest is truth; deterministic shards, checkpoints, and GPU-aware leases make work resumable. Request path: ML users to Batch API to Job orchestrator to Job metadata DB. Asynchronous path: GPU-class queues to GPU scheduler. Read path: Job status API to Progress/output manifest. External dependency: Object/model storage. — Batch inference system · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

The job manifest is truth; deterministic shards, checkpoints, and GPU-aware leases make work resumable.

INTERVIEW CONTRACT

Design large job admission, GPU-aware scheduling, checkpointing, artifacts, and cost-aware throughput.

CAPACITY QUESTIONS TO QUANTIFY

Hour jobs · heterogeneous GPUs · throughput focus · tenant budgets · large artifacts. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
ML users → Batch API
Submit job + inspect output enters over HTTPS / RPC. Batch API handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Batch API → Job orchestrator → Job metadata DB
Job orchestrator receives the command, checks invariants and retry identity, then uses job + shard plan to update Job metadata DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Job orchestrator → GPU-class queues → GPU scheduler → Progress/output manifest
Job orchestrator emits publish after commit; GPU scheduler uses consume and project / update to build Progress/output manifest. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Batch API → Job status API → Progress/output manifest / Job metadata DB
Job status API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
GPU scheduler → Object/model storage
range read/write crosses into Object/model storage. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Batch APIAuth + budget admission	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Job orchestratorValidate + split deterministic shards	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Job metadata DBShard state + attempts	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
GPU-class queuesModel + accelerator + priority	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
GPU schedulerLease, run, checkpoint	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Progress/output manifestCommitted shard artifacts	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Job status APIWeighted progress + diagnostics	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Object/model storageInputs, checkpoints, outputs	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL stores jobs/shards/attempts/manifests; S3 stores inputs/checkpoints/outputs; priority queues feed GPU work.
Partitioning / sharding: Partition inputs into immutable ranges/objects; queue by model/hardware class and tenant priority; colocate metadata by job_id.
Indexes: Jobs by tenant/state/time, unique shard identity, lease expiry, and output parts by job/shard/attempt.
Replication + consistency: Job state/accepted outputs use conditional commits. Execution is at least once; output becomes visible only through a complete manifest.
Cache, queue + recovery: Workers checkpoint, heartbeat, retry, and dead-letter; cache weights and hot input blocks locally.
Capacity math: Estimate input TB/job, records/sec/GPU, model GB, GPU memory, job concurrency, completion target, and checkpoint bytes.
Alternative rejected: One huge task minimizes orchestration but loses progress and parallelism; immutable shards plus manifests make retry safe.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

GPU packing

Group model, precision, memory, and sequence-length compatible work while enforcing tenant virtual time

Utilization without fairness starves small jobs

Checkpointing

Checkpoint at deterministic input boundaries and write immutable partial outputs

Opaque process snapshots are hard to move across GPU types

Stragglers

Speculatively duplicate only the tail after measuring expected gain and dedupe output commit

Blind duplication doubles expensive work

Failure pressure test

Show detection, containment, recovery, and evidence.

Spot interruption

Resume shard from last committed cursor on a compatible worker

recomputed examples

Bad input shard

Quarantine deterministic data error without retry storm

permanent shard failures

Result commit race

Conditionally publish one output version per shard attempt

discarded late outputs

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize submit large datasets and model versions and maximize accelerator throughput fairly.”
Scale
“The design changes around hour jobs · heterogeneous gpus · throughput focus · tenant budgets · large artifacts.”
Decision
“Large batches maximize throughput; smaller shards improve fairness and retry cost.”
Risk
“The first failure I want to pressure-test is: Preemption and stragglers can repeat expensive work or delay the tail.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Submit large datasets and model versions
Maximize accelerator throughput fairly
Resume after preemption or worker loss
Publish versioned outputs with cost and progress

Batch inference system · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

submitted

admitted

running

finalizing

completed or failed

02Data model and APIs4 entities · 3 interfaces

Core entities

InferenceJobjob_id, tenant, model_version, input_manifest, stateOwner: Job service

WorkShardjob_id, shard_id, input_range, attempt, stateOwner: Scheduler

Checkpointshard_id, cursor, model_digest, artifact_refOwner: Checkpoint store

OutputManifestjob_id, shard_outputs, schema, versionOwner: Result catalog

External interfaces

POST /v1/inference_jobs

Submit model, input manifest, and output contract

POST /v1/inference_jobs/{id}/cancel

Request durable cancellation

GET /v1/inference_jobs/{id}

Read progress, cost, failures, and result manifest

03Deep dives and trade-offsChoose one

GPU packing

Group model, precision, memory, and sequence-length compatible work while enforcing tenant virtual time

Utilization without fairness starves small jobs

Checkpointing

Checkpoint at deterministic input boundaries and write immutable partial outputs

Opaque process snapshots are hard to move across GPU types

Stragglers

Speculatively duplicate only the tail after measuring expected gain and dedupe output commit

Blind duplication doubles expensive work

04Failures, recovery, and evidence3 scenarios

Spot interruption

Resume shard from last committed cursor on a compatible worker

recomputed examples

Bad input shard

Quarantine deterministic data error without retry storm

permanent shard failures

Result commit race

Conditionally publish one output version per shard attempt

discarded late outputs

05What makes the answer seniorInterviewer signals

Throughput, queue time, and cost are separate success metrics
Make model and data versions immutable for reproducibility
The output manifest is the job’s commit boundary
Primary trade-off: Large batches maximize throughput; smaller shards improve fairness and retry cost.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
