04QuestionsChatGPT Playground

04 · Worked prompt

ChatGPT Playground

Design low-latency token streaming, conversation state, model routing, safety checks, and usage metering.

35 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design low-latency token streaming, conversation state, model routing, safety checks, and usage metering.

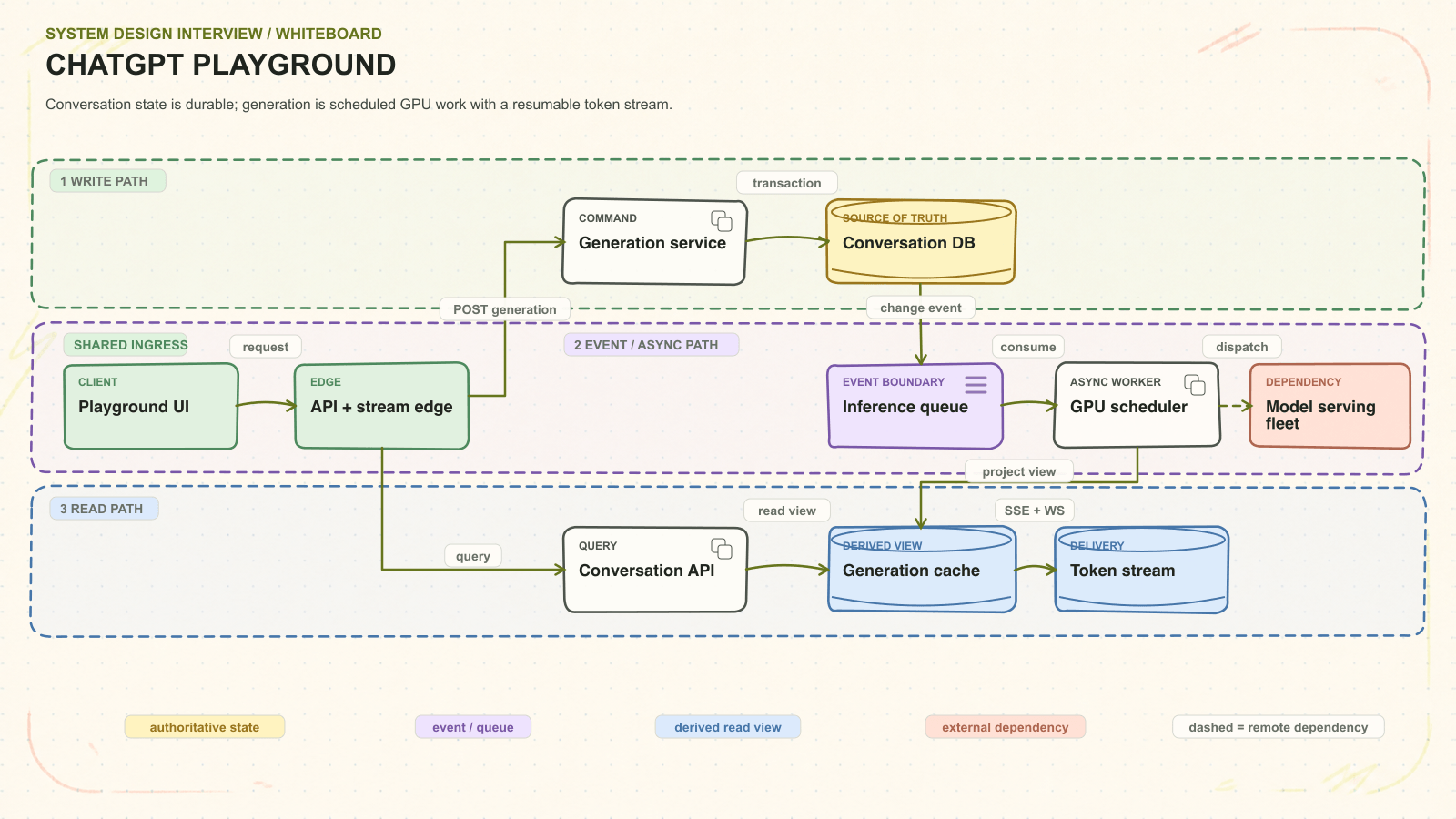

ChatGPT Playground system architecture. Conversation state is durable; generation is scheduled GPU work with a resumable token stream. Request path: Playground UI to API + stream edge to Generation service to Conversation DB. Asynchronous path: Inference queue to GPU scheduler. Read path: Conversation API to Generation cache. External dependency: Model serving fleet. Delivery path: Token stream. — ChatGPT Playground · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

Conversation state is durable; generation is scheduled GPU work with a resumable token stream.

INTERVIEW CONTRACT

Design low-latency token streaming, conversation state, model routing, safety checks, and usage metering.

CAPACITY QUESTIONS TO QUANTIFY

High concurrency · sub-second TTFT · variable prompts · per-tenant quotas. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Playground UI → API + stream edge
Prompt + stream cursor enters over HTTPS / RPC. API + stream edge handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
API + stream edge → Generation service → Conversation DB
Generation service receives the POST generation, checks invariants and retry identity, then uses transaction to update Conversation DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Generation service → Inference queue → GPU scheduler → Generation cache
Generation service emits publish after commit; GPU scheduler uses consume and project / update to build Generation cache. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
API + stream edge → Conversation API → Generation cache / Conversation DB
Conversation API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
GPU scheduler → Model serving fleet
dispatch crosses into Model serving fleet. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.
06
Deliver without changing the source of truth
GPU scheduler → Token stream → Playground UI
GPU scheduler uses token deltas; Token stream returns updates over SSE / WS. Sequence IDs, reconnect cursors, and backpressure make delivery resumable without turning a socket into durable state.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
API + stream edgeAuth, quota, SSE	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Generation servicePersist + safety + route	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Conversation DBMessages and usage	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Inference queueModel + priority class	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
GPU schedulerBatch, prefill, decode	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Generation cachePartial output + cursor	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Conversation APIMessages + generation state	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Model serving fleetGPU workers + KV cache	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback
Token streamOrdered deltas + terminal event	Connection and delivery state	Separates open connections and fan-out pressure from durable domain state.	Reconnect, ordering, slow consumers

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL stores conversations, messages, generation state, and the append-only usage ledger; object storage holds attachments; Redis holds ephemeral stream/admission state.
Partitioning / sharding: Start unsharded; later colocate by account_id or conversation_id so ordering and authorization stay local. Partition usage by account and time.
Indexes: Use (conversation_id, created_at, message_id), unique request/idempotency keys, and (account_id, created_at) for usage scans.
Replication + consistency: Messages and usage commit synchronously across zones. Token events are ordered per generation and resumable; partial output may lag the durable cursor.
Cache, queue + recovery: Redis stores quota counters and short replay buffers. A priority queue partitions by model/capacity class; GPU workers are leased and replaceable.
Capacity math: Estimate concurrent streams, prompt/output tokens/sec, KV-cache bytes/token, TTFT, inter-token latency, and GPU utilization.
Alternative rejected: Whole-conversation documents are convenient but become contended and expensive to rewrite; relational message rows expose ordering and idempotency.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Streaming contract

Use SSE with ordered event IDs and replay from the last acknowledged cursor

A reconnect should not start a second billable generation

Scheduling

Use continuous batching with prompt-length-aware admission and tenant fairness

Throughput cannot be optimized at the expense of interactive tail latency

Message commit

Store partial output as a generation artifact, then promote it to a completed message only at a terminal boundary

Conversation truth and transport state should not be conflated

Failure pressure test

Show detection, containment, recovery, and evidence.

Client disconnect

Continue briefly and allow cursor resume or cancel by policy

orphan generation rate and resumed streams

GPU failure

Retry only before externally visible nondeterministic output or create a new generation version

failed token position and duplicate usage

Safety service timeout

Fail closed for creation and expose a recoverable state

safety dependency p99 and blocked requests

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize create and resume conversations and stream tokens with low time to first token.”
Scale
“The design changes around high concurrency · sub-second ttft · variable prompts · per-tenant quotas.”
Decision
“SSE is simple for one-way tokens; WebSockets earn bidirectional control.”
Risk
“The first failure I want to pressure-test is: Partial streams and disconnects must not corrupt message state or usage totals.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Create and resume conversations
Stream tokens with low time to first token
Support model parameters and saved presets
Enforce safety, quotas, and usage accounting

ChatGPT Playground · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

accepted

queued

generating

completed

failed or cancelled

02Data model and APIs4 entities · 3 interfaces

Core entities

Conversationconversation_id, owner_id, title, versionOwner: Conversation service

Messagemessage_id, role, content, status, token_countOwner: Conversation service

Generationgeneration_id, model, parameters, stateOwner: Inference control plane

UsageEntryrequest_id, prompt_tokens, output_tokens, costOwner: Usage ledger

External interfaces

POST /v1/conversations/{id}/generations

Create an idempotent generation from a message version

GET /v1/generations/{id}/events

Stream token, safety, usage, and terminal events

POST /v1/generations/{id}/cancel

Request cancellation without deleting partial history

03Deep dives and trade-offsChoose one

Streaming contract

Use SSE with ordered event IDs and replay from the last acknowledged cursor

A reconnect should not start a second billable generation

Scheduling

Use continuous batching with prompt-length-aware admission and tenant fairness

Throughput cannot be optimized at the expense of interactive tail latency

Message commit

Store partial output as a generation artifact, then promote it to a completed message only at a terminal boundary

Conversation truth and transport state should not be conflated

04Failures, recovery, and evidence3 scenarios

Client disconnect

Continue briefly and allow cursor resume or cancel by policy

orphan generation rate and resumed streams

GPU failure

Retry only before externally visible nondeterministic output or create a new generation version

failed token position and duplicate usage

Safety service timeout

Fail closed for creation and expose a recoverable state

safety dependency p99 and blocked requests

05What makes the answer seniorInterviewer signals

Name the exact moment the assistant message becomes durable
Separate conversation state, inference execution, and usage accounting
Discuss TTFT and inter-token latency instead of one generic latency number
Primary trade-off: SSE is simple for one-way tokens; WebSockets earn bidirectional control.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
