04QuestionsPayment system

04 · Worked prompt

Payment system

Design payment intents, idempotency, ledgers, authorization, settlement, reconciliation, and webhooks.

45 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

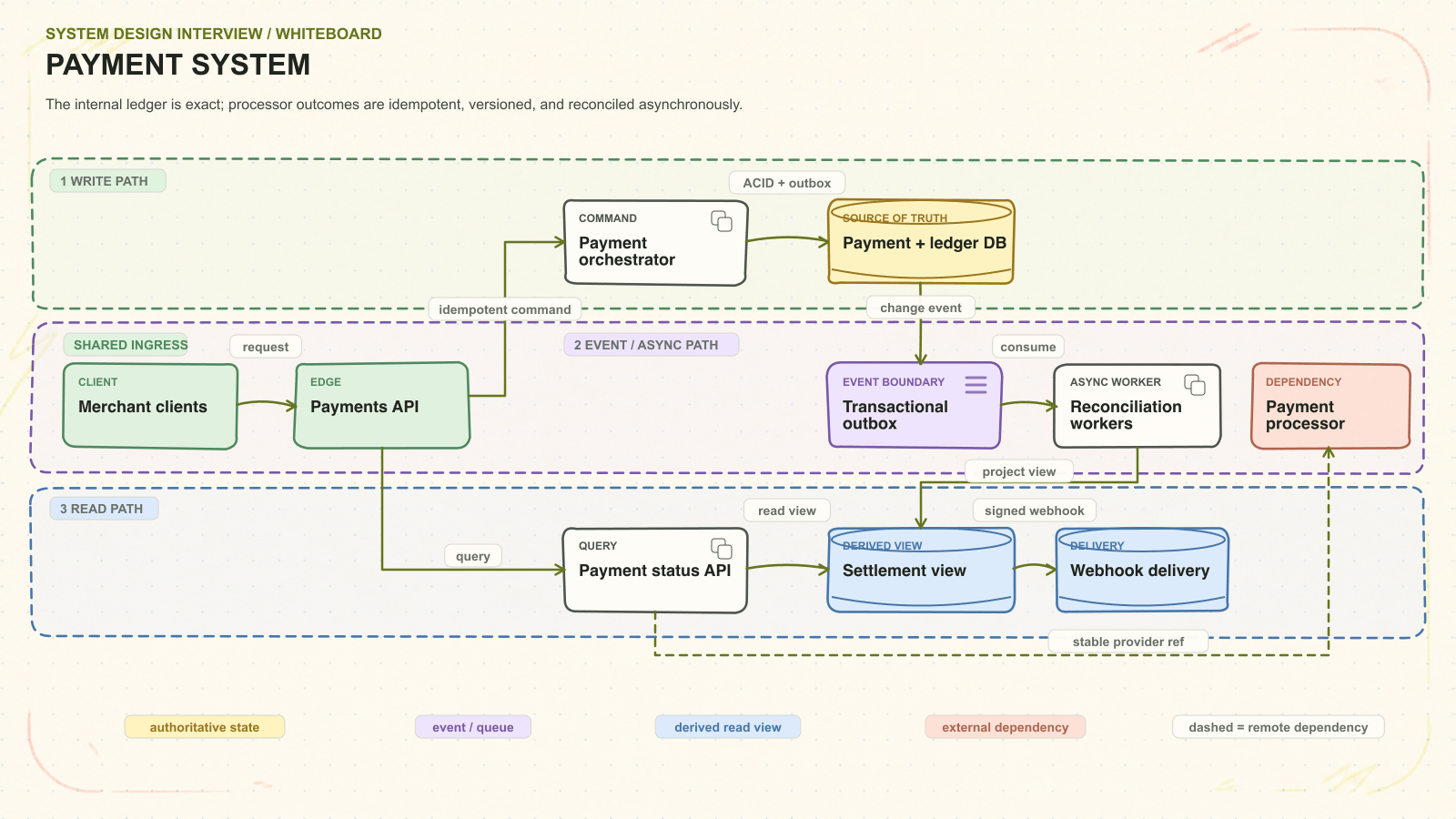

One complete box-and-arrow design

Design payment intents, idempotency, ledgers, authorization, settlement, reconciliation, and webhooks.

Payment system system architecture. The internal ledger is exact; processor outcomes are idempotent, versioned, and reconciled asynchronously. Request path: Merchant clients to Payments API to Payment orchestrator to Payment + ledger DB. Asynchronous path: Transactional outbox to Reconciliation workers. Read path: Payment status API to Settlement view. External dependency: Payment processor. Delivery path: Webhook delivery. — Payment system · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

The internal ledger is exact; processor outcomes are idempotent, versioned, and reconciled asynchronously.

INTERVIEW CONTRACT

Design payment intents, idempotency, ledgers, authorization, settlement, reconciliation, and webhooks.

CAPACITY QUESTIONS TO QUANTIFY

Exact money · asynchronous rails · zero duplicate charges · long audit retention. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Merchant clients → Payments API
Create, capture, refund enters over HTTPS / RPC. Payments API handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Payments API → Payment orchestrator → Payment + ledger DB
Payment orchestrator receives the idempotent command, checks invariants and retry identity, then uses ACID + outbox to update Payment + ledger DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Payment orchestrator → Transactional outbox → Reconciliation workers → Settlement view
Payment orchestrator emits publish after commit; Reconciliation workers uses consume and project / update to build Settlement view. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Payments API → Payment status API → Settlement view / Payment + ledger DB
Payment status API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Payment orchestrator → Payment processor
stable provider ref crosses into Payment processor. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.
06
Deliver without changing the source of truth
Reconciliation workers → Webhook delivery → Merchant clients
Reconciliation workers uses signed webhook; Webhook delivery returns updates over stream / push. Sequence IDs, reconnect cursors, and backpressure make delivery resumable without turning a socket into durable state.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Payments APIAuth + idempotency scope	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Payment orchestratorState machine + provider call	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Payment + ledger DBIntent and balanced entries	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Transactional outboxCommitted merchant events	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Reconciliation workersWebhooks + statements	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Settlement viewAttempts, disputes, payout	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Payment status APIIntent + ledger + settlement	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Payment processorAuthorize/capture/refund	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback
Webhook deliverySigned at-least-once events	Connection and delivery state	Separates open connections and fan-out pressure from durable domain state.	Reconnect, ordering, slow consumers

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL/distributed SQL with strong transactions owns payment intents and a double-entry ledger; queues own provider workflows/webhooks.
Partitioning / sharding: Partition by merchant or ledger account while keeping both ledger sides in one transaction domain; coordinate true cross-shard transfers.
Indexes: Unique (merchant_id, idempotency_key), provider reference, ledger (account_id, sequence), provider_event_id, and unsettled-attempt age.
Replication + consistency: Internal ledger balance and intent transitions are serializable. External settlement is asynchronous and reconciled; timeout is ambiguous.
Cache, queue + recovery: Transactional outbox/inbox, signed callbacks, append-only corrections, statement comparison, and explicit repair cases make money observable.
Capacity math: Estimate payments/sec, entries/payment, currencies, provider p99, retry volume, settlement files, and reconciliation backlog.
Alternative rejected: NoSQL event storage scales but complicates balance invariants; start with a transactional ledger and shard only with understood account locality.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

Ledger boundary

Post debits and credits atomically and derive balances from entries

Mutable balance columns cannot explain money movement

Ambiguous timeout

Query the processor by stable merchant reference before creating another attempt

Retries without inquiry cause duplicate charges

Reconciliation

Compare provider statements to attempts and ledger, then queue explicit adjustments

Webhooks alone are not proof of settlement

Failure pressure test

Show detection, containment, recovery, and evidence.

Processor timeout

Mark attempt unknown and inquire before retry

unknown payment age

Duplicate webhook

Deduplicate provider event ID and make handler idempotent

webhook duplicate rate

Ledger posting fails

Do not report capture final; retry internal posting from durable provider result

unposted captures

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize authorize, capture, refund, and query payments and never create a duplicate customer charge.”
Scale
“The design changes around exact money · asynchronous rails · zero duplicate charges · long audit retention.”
Decision
“Keep immutable ledger truth separate from mutable workflow state.”
Risk
“The first failure I want to pressure-test is: A timeout can mean the provider charged while the caller believes it failed.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Authorize, capture, refund, and query payments
Never create a duplicate customer charge
Keep an immutable auditable balance history
Resolve delayed and out-of-order processor callbacks

Payment system · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

created

authorized

captured

settled

refunded or disputed

02Data model and APIs4 entities · 4 interfaces

Core entities

PaymentIntentpayment_id, merchant_id, amount, state, versionOwner: Payment service

LedgerEntryentry_id, transaction_id, account, debit, creditOwner: Ledger

ProviderAttemptattempt_id, payment_id, provider_ref, stateOwner: Adapter

WebhookEventprovider_event_id, payload_hash, processed_atOwner: Webhook inbox

External interfaces

POST /v1/payment_intents

Create intent under merchant idempotency key

POST /v1/payment_intents/{id}/capture

Conditionally capture an authorized amount

POST /v1/refunds

Create a refund against settled payment balance

GET /v1/payment_intents/{id}

Read workflow and reconciliation state

03Deep dives and trade-offsChoose one

Ledger boundary

Post debits and credits atomically and derive balances from entries

Mutable balance columns cannot explain money movement

Ambiguous timeout

Query the processor by stable merchant reference before creating another attempt

Retries without inquiry cause duplicate charges

Reconciliation

Compare provider statements to attempts and ledger, then queue explicit adjustments

Webhooks alone are not proof of settlement

04Failures, recovery, and evidence3 scenarios

Processor timeout

Mark attempt unknown and inquire before retry

unknown payment age

Duplicate webhook

Deduplicate provider event ID and make handler idempotent

webhook duplicate rate

Ledger posting fails

Do not report capture final; retry internal posting from durable provider result

unposted captures

05What makes the answer seniorInterviewer signals

Say what customer-visible success means at each state
The ledger and payment state machine solve different problems
A strong answer embraces eventual external settlement without weakening internal accounting
Primary trade-off: Keep immutable ledger truth separate from mutable workflow state.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
