04QuestionsCI/CD system

04 · Worked prompt

CI/CD system

Design workflow DAGs, isolated runners, artifacts, logs, retries, and fair scheduling for bursty builds.

40 minInterview blueprint

INTERVIEW RUBRIC

What a passing answer must show

100 points · 45 minutes

20pts
Scope the problem
0–5 min
Prioritize the core flows, state the scale, and name the non-goals.
15pts
Define contracts
5–10 min
Identify durable entities, APIs, idempotency, and the source of truth.
30pts
Complete the diagram
10–25 min
Trace one write path and one read path. Label the commit boundary and async work.
20pts
Lead one deep dive
25–38 min
Choose the highest-risk trade-off and explain the mechanism, alternative, and cost.
15pts
Prove reliability
38–45 min
Walk a failure, recovery, metric, bottleneck, and evolution path.

DRAW THIS FIRST

One complete box-and-arrow design

Design workflow DAGs, isolated runners, artifacts, logs, retries, and fair scheduling for bursty builds.

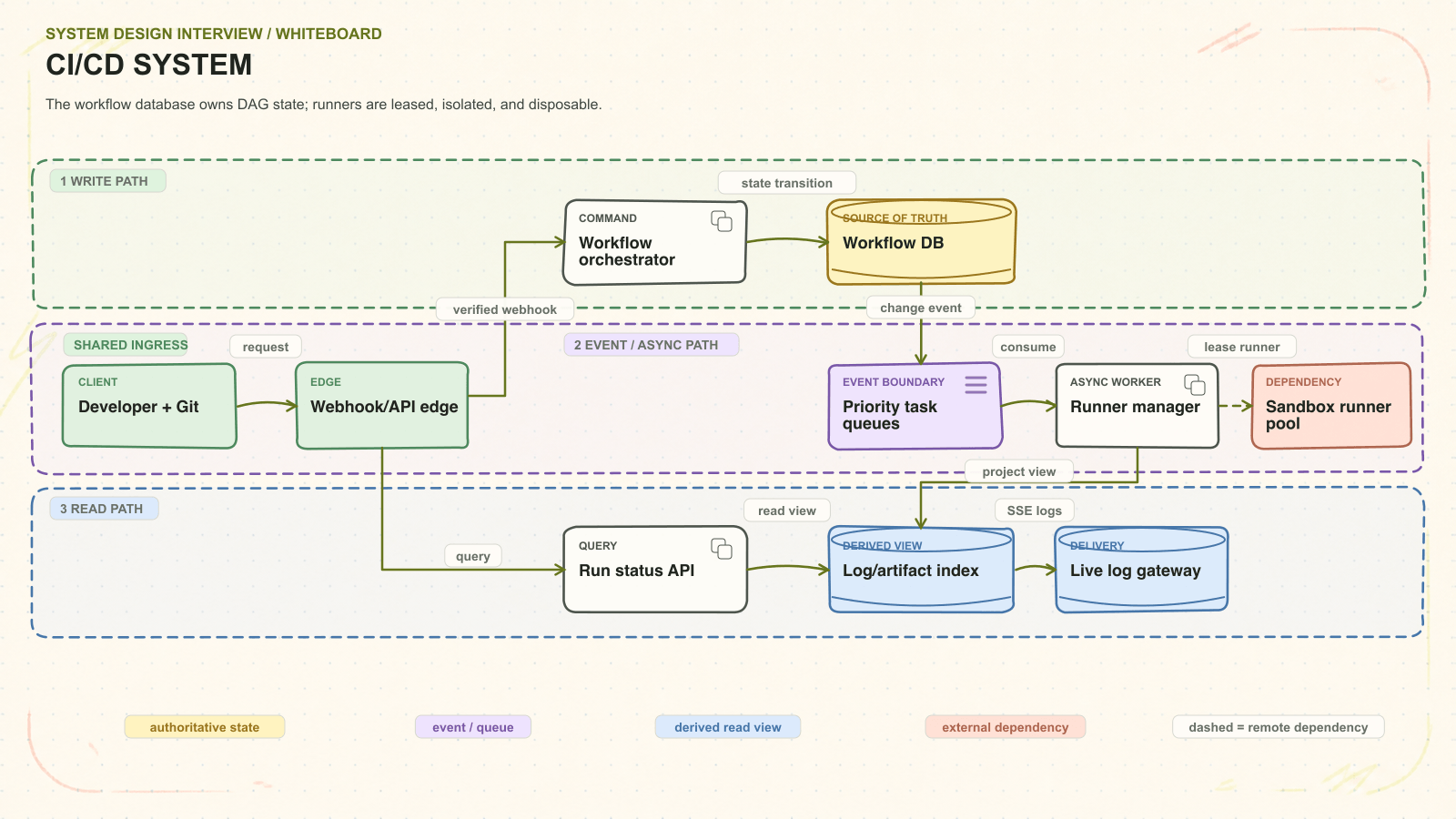

CI/CD system system architecture. The workflow database owns DAG state; runners are leased, isolated, and disposable. Request path: Developer + Git to Webhook/API edge to Workflow orchestrator to Workflow DB. Asynchronous path: Priority task queues to Runner manager. Read path: Run status API to Log/artifact index. External dependency: Sandbox runner pool. Delivery path: Live log gateway. — CI/CD system · system architecture

DEFEND THE DIAGRAM

Explain every boundary before adding more boxes.

The workflow database owns DAG state; runners are leased, isolated, and disposable.

INTERVIEW CONTRACT

Design workflow DAGs, isolated runners, artifacts, logs, retries, and fair scheduling for bursty builds.

CAPACITY QUESTIONS TO QUANTIFY

Bursty pushes · thousands concurrent jobs · minute-to-hour runtimes · untrusted code. State average and peak load, stored bytes, bandwidth or open connections, and the growth horizon before choosing a partitioning strategy.

End-to-end walkthrough

Trace the architecture in this order.

01
Enter and classify the request
Developer + Git → Webhook/API edge
Commit, webhook, cancel enters over HTTPS / RPC. Webhook/API edge handles identity, admission, routing, and request context; it deliberately does not own domain truth.
02
Validate, then cross the commit boundary
Webhook/API edge → Workflow orchestrator → Workflow DB
Workflow orchestrator receives the verified webhook, checks invariants and retry identity, then uses state transition to update Workflow DB. The user-visible mutation is accepted only after this boundary succeeds.
03
Move replayable work off the request path
Workflow orchestrator → Priority task queues → Runner manager → Log/artifact index
Workflow orchestrator emits publish after commit; Runner manager uses consume and project / update to build Log/artifact index. Consumers must tolerate duplicate delivery and stale retries because this path is asynchronous.
04
Serve reads from the right authority
Webhook/API edge → Run status API → Log/artifact index / Workflow DB
Run status API uses optimized read for the common, read-optimized path and strong read when correctness or repair requires authoritative state. The API must state the freshness promise instead of hiding it.
05
Contain the dependency boundary
Runner manager → Sandbox runner pool
lease runner crosses into Sandbox runner pool. Treat timeouts as ambiguous, use a deadline and idempotent retry or reconciliation, and keep the core state recoverable when the dependency is unavailable.
06
Deliver without changing the source of truth
Runner manager → Live log gateway → Developer + Git
Runner manager uses fan-out; Live log gateway returns updates over SSE logs. Sequence IDs, reconnect cursors, and backpressure make delivery resumable without turning a socket into durable state.

Ownership ledger

Why each box exists—and what it must defend.

Component	Owns	Why it exists	Interviewer probe
Webhook/API edgeVerify, auth, quota	Identity, admission, routing	Protects the system edge and attaches trusted context before domain work begins.	Timeout budgets, quotas, regional routing
Workflow orchestratorExpand DAG + release tasks	Write invariants and retry identity	Serializes or conditionally applies state changes before acknowledging success.	Concurrent writes, deduplication, hot ownership
Workflow DBRun + task state	Authoritative durable state	Provides the one record used to resolve disputes, recover, and rebuild projections.	Partition key, replication, consistency
Priority task queuesResource-class partitions	Durable asynchronous handoff	Absorbs bursts and lets slow or optional work retry independently of the request.	Ordering key, lag, retention, dead letters
Runner managerFenced leases + retries	Replayable processing	Runs expensive, fan-out, or side-effecting work with leases and bounded retries.	Idempotency, poison work, autoscaling
Log/artifact indexCursors + signed links	Rebuildable query state	Shapes data for the dominant reads without weakening the write-side invariant.	Freshness, versioning, rebuild time
Run status APIDAG, attempts, artifacts	Read composition and freshness policy	Chooses authoritative or derived state and returns a stable client contract.	Fan-out, cache policy, partial results
Sandbox runner poolCompile, test, build	External capability, not local truth	Keeps a specialized or third-party concern behind a replaceable contract.	Ambiguous timeout, circuit breaking, fallback
Live log gatewayTail task output	Connection and delivery state	Separates open connections and fan-out pressure from durable domain state.	Reconnect, ordering, slow consumers

Physical design

Name the database, shard key, indexes, and guarantees.

Database + storage: PostgreSQL owns workflow/DAG and attempt state, S3 owns logs/artifacts, and Kafka/SQS or a durable priority queue owns runnable work.
Partitioning / sharding: Partition metadata by organization_id/repository_id and queue by resource class. Keep one run's DAG local; key objects by org/run/task/digest.
Indexes: Unique provider_delivery_id; (run_id, state), (task_id, attempt), (queue_class, priority, ready_at), and artifact digest indexes.
Replication + consistency: DAG transitions and accepted terminal attempts use transactions or conditional writes. Logs and artifact indexes may converge asynchronously.
Cache, queue + recovery: Use an outbox to avoid DB/queue dual writes; runners use fenced leases, heartbeats, bounded retries, and dead letters.
Capacity math: Estimate webhook bursts, concurrent tasks, log MB/sec, artifact GB/day, runner cold start, and queue age per resource class.
Alternative rejected: Keeping the DAG only in a broker makes repair opaque; durable relational workflow state plus queues for ready work is recoverable.

Deep-dive candidates

Pick one risk and explain the mechanism, alternative, and cost.

DAG scheduling

Maintain remaining-dependency counts and atomically release a node once

Scanning the whole graph after every task is wasteful and race-prone

Runner isolation

Use ephemeral microVMs, outbound network policy, short-lived credentials, and immutable base images

The user workload is hostile by default

Retry semantics

Create a new attempt under the same logical task and publish artifacts only after terminal commit

Retries must not overwrite evidence from earlier attempts

Failure pressure test

Show detection, containment, recovery, and evidence.

Runner heartbeat lost

Expire the lease and enqueue a new attempt after a fencing check

expired lease count and duplicate runner activity

Webhook replay

Deduplicate provider delivery ID and repo commit tuple

webhook dedupe rate

Log backpressure

Spool locally with bounded buffers and preserve job execution

dropped log bytes and stream lag

Before you finish, explicitly cover

Functional requirements and non-goals
Peak traffic, storage, bandwidth, and growth
Entities, APIs, idempotency, and pagination
Source of truth and consistency promise
Partition key, replicas, caches, and hot spots
Retries, backpressure, failover, and reconciliation
Latency, saturation, correctness, and recovery metrics
Security, migration, cost, and multi-region evolution

SAY THIS WHILE YOU DRAW

A four-part talk track

Scope
“I’ll prioritize trigger workflows from signed repository events and execute dag stages with retries and cancellation.”
Scale
“The design changes around bursty pushes · thousands concurrent jobs · minute-to-hour runtimes · untrusted code.”
Decision
“Ephemeral runners maximize isolation; warm pools reduce startup time at greater cost and risk.”
Risk
“The first failure I want to pressure-test is: Duplicate webhooks and lost heartbeats can execute deployments twice or leak capacity.”

Reference details

Open these only after you can explain the diagram above without reading.

01Requirements and state lifecycle4 requirements

Trigger workflows from signed repository events
Execute DAG stages with retries and cancellation
Stream logs and preserve artifacts
Isolate tenants and support bursty workloads

CI/CD system · state lifecycle

state lifecycle

Each transition must be durable, observable, and safe to retry.

created

running

succeeded

failed

cancelled

02Data model and APIs4 entities · 3 interfaces

Core entities

WorkflowDefinitionrepo_id, revision, DAG, policyOwner: Workflow service

WorkflowRunrun_id, commit_sha, state, versionOwner: Orchestrator

TaskAttempttask_id, attempt, lease, resultOwner: Scheduler

Artifactartifact_id, digest, producer, retentionOwner: Artifact service

External interfaces

POST /v1/hooks/git

Verify and deduplicate a repository event

POST /v1/runs/{id}/cancel

Version-check and cancel runnable work

GET /v1/runs/{id}/events

Stream logs and state changes from a cursor

03Deep dives and trade-offsChoose one

DAG scheduling

Maintain remaining-dependency counts and atomically release a node once

Scanning the whole graph after every task is wasteful and race-prone

Runner isolation

Use ephemeral microVMs, outbound network policy, short-lived credentials, and immutable base images

The user workload is hostile by default

Retry semantics

Create a new attempt under the same logical task and publish artifacts only after terminal commit

Retries must not overwrite evidence from earlier attempts

04Failures, recovery, and evidence3 scenarios

Runner heartbeat lost

Expire the lease and enqueue a new attempt after a fencing check

expired lease count and duplicate runner activity

Webhook replay

Deduplicate provider delivery ID and repo commit tuple

webhook dedupe rate

Log backpressure

Spool locally with bounded buffers and preserve job execution

dropped log bytes and stream lag

05What makes the answer seniorInterviewer signals

Draw the control plane separately from runner data paths
The hardest invariant is one terminal task result despite at-least-once execution
Staff-level answers discuss fairness, secrets, and fleet evolution
Primary trade-off: Ephemeral runners maximize isolation; warm pools reduce startup time at greater cost and risk.

BEFORE THE NEXT QUESTION

Can you redraw it from memory?

Name the source of truth.
Trace the write and read paths.
Defend one trade-off.
Recover from one failure.
